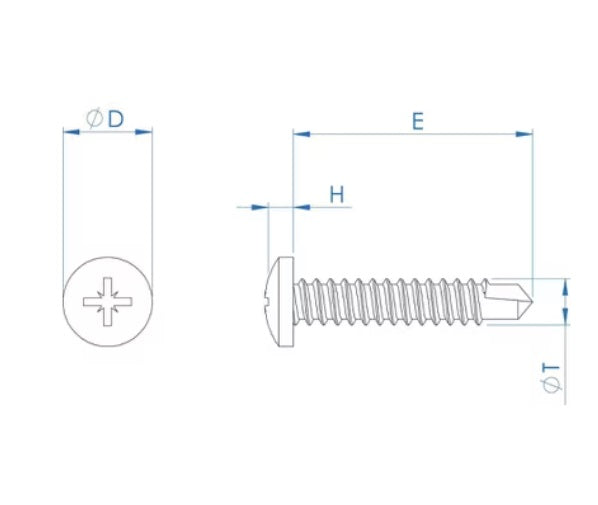

- Thread Size (T) - No.12 (5.5mm)
- Overall Length (E) - 50mm
- Head Diameter (Max) (D) - 11mm
- Material - Stainless Steel (A2)
- Finish - Matte Black
- Drill Point Diameter - 4.8mm
- Drive Size - PZ3
- For Use With - Plastics & Softer Thin Sheet Materials or Thin Wall Section, e.g. Aluminium & Brass
- Head Diameter (Min) (D) - 10.57mm
- Head Length (Max) (H)- 4mm
- Head Length (Min) (H) - 3.7mm
- Manufacturing Standard - DIN 7504M Z
- Material Specification - Stainless Steel (A2)
- Max Drill Depth - 5.25mm
